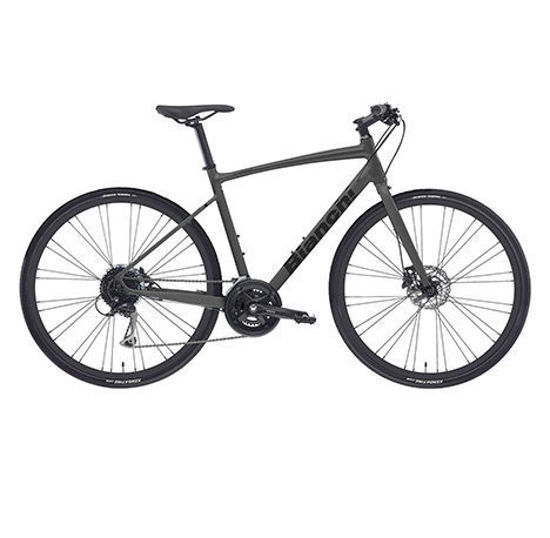

C Sport 1 Altus MECH

TECH SPECS

• FRAMESET

  1. FRAME

     C-Sport Step Thru alu disc, 700C Old 135mm, integrated cable routing, Smooth welding, 1.1/8" head tube (semi-integrated down HT tube and integrated in top HT tube). Seat tube 31.6mm, size: 43,47,51,55cm

  2. FORK

     Bianchi Alu Disc

  3. HEADSET

     Fsa No.8B/ZS4D 1.1/8"

• DRIVETRAIN

  1. SHIFTERS

     Shimano Tourney ST-TX800 3x8sp

  2. REAR DERAILLEUR

     Shimano Altus RD-M310-L

  3. FRONT DERAILLEUR

     Shimano Tourney FD-TY700-TS3

  4. CRANKSET

     Shimano FC-TY301 42x34x24T, crank length: 170mm-43/47cm, 175mm-51/55cm

  5. BOTTOM BRACKET

     Shimano BB-UN101, Spindle:Square Type, Shell:BSA 68mm, Spindle:122.5mm

  6. CHAIN

     Kmc Z-72

  7. CASSETTE

     Shimano CS-HG200-8, 12-14-16-18-21-24-28-32T

• BRAKES

  1. BRAKES

     Shimano Tourney BR-TX805

  2. BRAKELEVERS

     Included w/shifters

  3. ROTOR

     Shimano SM-RT10, 160mm, Center Lock

• WHEELS

  1. WHEELS

     Velomann ATD500 disc version, alloy, 700c 622x19, 32h, tubeless ready

  2. REARHUB

     Formula CL-1422

  3. FRONTHUB

     Formula CL-1420

  4. TIRE

     Kenda Kwick Tendril 700x38c, 30TPI

• COCKPIT

  1. STEM

     Velomann ST69A 3D forged 6061 Alloy, 12° 31,8mm 1.1/8", ext: 70mm-43cm, 10mm-47/51cm, 120mm-55/59cm

  2. HANDLEBAR

     Velomann Alloy 6061 DB, 620mm, flat bar, 9° bend, 31,8mm

  3. GRIPS / EXTENSIONS

     Bianchi Ergonomic Double density, Black/CK

• SADDLE

  1. SEATPOST

     Velomann SP02.1 Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm

  2. SADDLE

     Selle Royal, 269mm x 146mm, steel rail, black-ck semi PU cover

• ACCESSORIES

  1. PEDALS

     included

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

GEOMETRY
